Converter for HDMI and HD-SDI
(HDSDI Repeater korea)

Ø HDMI to HD-SDI(SV-HDT0801) and

HD-SDI to HEMI(SV-HDR0801) Converter

Ø Supply power to Megapixel Cameras

Ø Long distance transmission over

- HDMI to HD-SDI(SV-HDT0801) and HD-SDI to HDMI (SV-HDR0801) Converter

- “HD-SDI&Power” transmission over 1 single coaxial cable

- Supply power to Megapixel cameras(8W/DC type) over the single coaxial cable

- Long distance transmission over 200m (HD:1.485G)/130m (Full HD:2.97G)

- No need of power wiring & save infrastructure cost under 30~50%

- For cameras with HD-SDI Video output, possible to use the SV-HDR0801 only

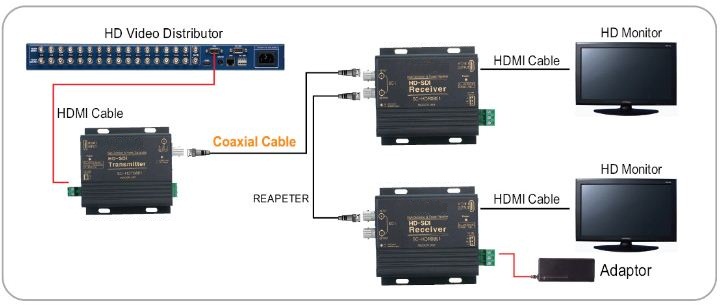

- Transmission distance extension function (When Receiver can be used as Repeater,

it is possible to extend the transmission distance 200m additionally

- Use coaxial cable, more economical than other transmission solutions such as Fiber-optic,

HDMI cabling solutions

- Auto diagnosis of cable status for safe power supply

- Surge Protection function built-in transmitter

MODEL			SV-HDT0801
Video In			HDMI Digital Signal
Video Out			HD-SDI (HD:1.485G, Full-HD:3G)
Power	Output		Looped through output(51Ω 1Vp-p~2.5Vp-p)
	LED		Red on: Normal, Red Flickering:Abnormal
Max. Distance			130m(Full HD)/200m(HD) with RG-6
connect Port	HDMI		HDMI 1.3 Connector
	SDI Out		BNC-F
LED	SDI	TX	Green LED Flickering:Normal
	HDMI	Link	yellow LED On: HDMI connected
	Power		RED LED On: Normal
Temperature / Humidity			-10°C~+50°C / 0~80%
Case body / Weight			Aluminum / 202g
Dimension (mm)			93(W)x92.5(H)x34.7(D)

MODEL			SV-HDR0801
Video In			HD-SDI (HD:1.485G, Full-HD:3G)
Video Out			HDMI Digital Signal
HD-SDI			Buffered Output(when using as repeater)
Power In			AC/DC Adapter +48V 1.0A
Connect Port	HD-SDI Input		BNC-F, 75Ω
	HD-SDI Output		BNC-F, 75Ω
	HDMI Output		HDMI Connector
	Power Input		3pin Terminal Block
LED	SDI		Green On : Normal
	HDMI		Yellow On : Normal
	Power		Red on : Normal, Red Flickering : Abnormal
DIP Swith (Power Control)	SW1		Nonfunctional
	SW2		On: Supply DC48V through Coax, Off: Cut off the power
Power Consumption			4.6W (Full HD Transmission)
Temperature/ Humidity			-10°C~+40°C / 0~80%
Case body/ Weight			Aluminum / 210g
Dimension (mm)			93(W)x92.5(H)x34.7(D)
Adapter			AC 110~240V
